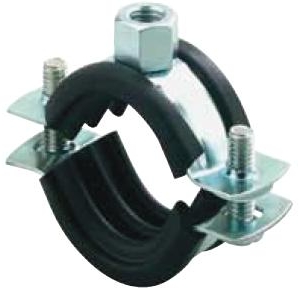

Colier conducta cu doua suruburi, manson EPDM/otel inoxidabil 20–116 mm 1/2″ – 4″

Comandă de 0,00 lei și ai livrare GRATUITĂ oriunde în țară!

Interval de prețuri: 7,61 lei până la 25,05 lei fara TVA

Colier conducta cu doua suruburi, manson EPDM/otel inoxidabil 20–116 mm 1/2″ – 4″

Compact structural design of the clamp enables simple and full piping insulation without larger overlap in the area of the toggle and closing device. All this is possible even using a small thickness of insulating material.
Screws have a combined head with a cross and a slot.
The pipe clamp is checked regarding noise protection according to DIN 4109.
It prevents the action of electrolysis.
M8/M10 clamping head with a combined thread starting with a dimension of 54–59 mm enables universal connection.
Temperature resistivity of up to 225 °C is ensured in combination with a silicone D R profile.
Two-screw pipe clamps satisfy the highest requirements while mounting on walls, ceilings and floors but also in connection with pipes used in sanitary installations.

12–16 mm až 48–53 mm: 3,0 kN
54–59 mm až 67–71 mm: 4,1 kN
72–78 mm až 102–116 mm: 8,2 kN
Maximum safe centric load:

12–16 mm až 48–53 mm: 0,8 kN
54–59 mm až 67–71 mm: 2,1 kN
72–78 mm až 102–116 mm: 2,5 kN
102–116 mm EKO: 1,9 kN
Technical Data Rubber Linings Used In Pipe Clamps
- Material : EPDM
- Reaction to fire:conf DIN 4102:1998 Hardness of rubber lining:
- Use within temperature range: -50 °C až +120 °C
- Hardness of rubber lining: 45° ± 5 Shore A / 15 s

COD:	Descriere produs	Diametru teava	Disponibilitate stoc	Cantitate per.cutie	Preț	Cantitate
KNR RS A2 4	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 102–116 4“ M10	4“	verifica stoc	25 buc	25,05 lei fara TVA	- +
KNR RS A2 3	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 87–92 3“ M10	3“	verifica stoc	25 buc	18,11 lei fara TVA	- +
KNR RS A2 212	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 72–78 2 1/2" M10	2 1/2"	verifica stoc	25 buc	16,84 lei fara TVA	- +
KNR RS A2 2	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 60–64 2“ M8	2“	verifica stoc	25 buc	11,66 lei fara TVA	- +
KNR RS A2 112	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 48–53 6/4“ M8	6/4“	verifica stoc	25 buc	9,12 lei fara TVA	- +
KNR RS A2 114	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 40–46 5/4“ M8	5/4“	verifica stoc	50 buc	9,12 lei fara TVA	- +
KNR RS A2 1	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 31–38 1“ M8	1"	verifica stoc	50 buc	8,12 lei fara TVA	- +
KNR RS A2 34	Colier conducta cu doua suruburi, manson EPDM/otel inox A2 25–30 3/4" M8	3/4"	verifica stoc	100 buc	8,08 lei fara TVA	- +
KNR RS A2 12	Colier conducta cu doua suruburi, manson EPDM/otel inox 20–23 1/2" M8	1/2"	verifica stoc	100 buc	7,61 lei fara TVA	- +
