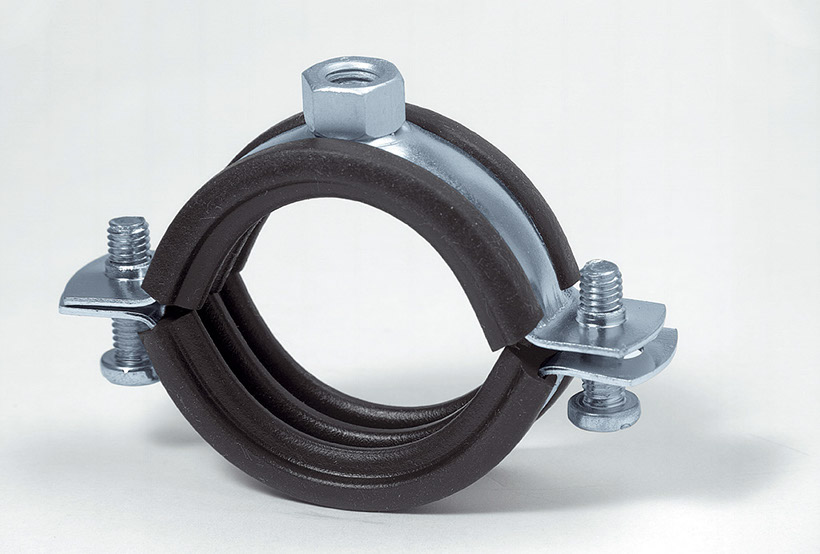

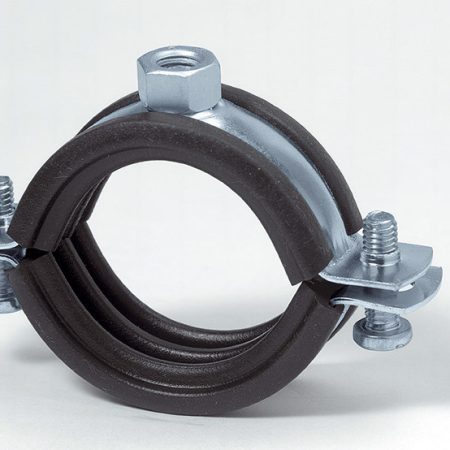

Colier conducta cu doua suruburi, tip M8/M10/EPDM/ Gama ¹⁄₄” – 8” (12–219 mm)

Comandă de 0,00 lei și ai livrare GRATUITĂ oriunde în țară!

Interval de prețuri: 1,72 lei până la 14,16 lei fara TVA

Colier conducta cu doua suruburi, tip M8/M10/EPDM/ Gama ¹⁄₄” – 9” (12–219 mm)

Pipe clamps of a dimension of ¹⁄₄” to ⁶⁄₄” are equipped with an M8 clamping head and pipe clamps of dimensions of 54–59 mm to 210–219 mm (8”) are equipped with a more massive M8/M10 clamping head and a combined thread.

Compact structural design of the clamp enables simple and full piping insulation without larger overlap in the area of the toggle and closing device. All this is possible even using a small thickness of insulating material.
Screws have a combined head with a cross and a slot.
The pipe clamp is checked regarding noise protection according to DIN 4109.
It prevents the action of electrolysis.
M8/M10 clamping head with a combined thread starting with a dimension of 54–59 mm enables universal connection.
Temperature resistivity of up to 225 °C is ensured in combination with a silicone D R profile.
Two-screw pipe clamps satisfy the highest requirements while mounting on walls, ceilings and floors but also in connection with pipes used in sanitary installations.

Technical data

Load causing break in centric tension

12–16 mm až 48–53 mm: 3,0 kN
54–59 mm až 67–71 mm: 4,1 kN
72–78 mm až 102–116 mm: 8,2 kN
121–127 mm až 210–219 mm: 10,8 kN

Maximum safe centric load:

12–16 mm až 48–53 mm: 0,8 kN
54–59 mm až 67–71 mm: 2,1 kN
72–78 mm až 102–116 mm: 2,5 kN
102–116 mm EKO: 1,9 kN
121–127 mm až 210–219 mm: 3,0 kN
Maximum safe centric load: Min. 25 N/m
Pipe clamp material: ČSN 11 320.21
Surface coating: zinc-plated
Certificate: TZUS: č.204/C5/2013/070-045127

Technical data rubber linings used in pipe clamps

Material : EPDM
Reaction to fire:conf DIN 4102:1998 Hardness of rubber lining:
Use within temperature range: -50 °C až +120 °C
Hardness of rubber lining: 45° ± 5 Shore A / 15 s

Se folosest in :

sanitary and heating installations
gas distribution systems
air conditioning systems

Se pot monta :

steel pipes
cast iron pipes
copper pipes
glass pipes
plastic pipes

SKU: Nu se aplică Categorii: Coliere de Conducta cu Manson Cauciuc, INSTALAȚII - Coliere Conducta și Splinkere, Sină perforată, Console, Cleme metal RF FIRE

COD:	Descriere produs	Diametru teava	Disponibilitate stoc	Cantitate per.cutie	Preț	Cantitate
KNR RS 38	Colier conducta cu doua suruburi, manson EPDM/ M8 17–19 mm 3/8"	3/8"	Stoc curent	100 buc	1,72 lei fara TVA	- +
KNR RS 12	Colier conducta cu doua suruburi, manson EPDM/ M8 20–23 mm 1/2"	1/2"	Verifica stoc	100 buc	1,87 lei fara TVA	- +
KNR RS 34	Colier conducta cu doua suruburi, manson EPDM/ M8 25–30 mm 3/4"	3/4"	Stoc curent	100 buc	2,06 lei fara TVA	- +
KNR RS 1	Colier conducta cu doua suruburi, manson EPDM/ M8 31–38 mm 1"	1"	Stoc curent	100 buc	2,18 lei fara TVA	- +
KNR RS 114	Colier conducta cu doua suruburi, manson EPDM/ M8 40–46 mm 5/4“	5/4“	Verifica stoc	100 buc	2,39 lei fara TVA	- +
KNR RS 112	Colier conducta cu doua suruburi, manson EPDM/ M8 48–53 mm 6/4“	6/4“	Verifica stoc	100 buc	2,54 lei fara TVA	- +
KNR RS 134	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 54–59 mm 7/4"	7/4"	Verifica stoc	50 buc	3,70 lei fara TVA	- +
KNR RS 2	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 60–64 mm 2“	2“	Verifica stoc	50 buc	3,97 lei fara TVA	- +
KNR RS 214	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 67–71 mm 2 1/4"	2 1/4"	Verifica stoc	50 buc	4,48 lei fara TVA	- +
KNR RS 212	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 72–78 mm 2 1/2"	2 1/2"	Verifica stoc	50 buc	5,28 lei fara TVA	- +
KNR RS 234	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 81–86 mm 2 3/4"	2 3/4"	Verifica stoc	50 buc	5,97 lei fara TVA	- +
KNR RS 3	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 87–92 mm 3“	3“	Verifica stoc	50 buc	5,98 lei fara TVA	- +
KNR RS 312	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 95–103 mm 3 1/2"	3 1/2"	Verifica stoc	25 buc	6,31 lei fara TVA	- +
KNR RS 4	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 102–116 mm 4“	4“	Verifica stoc	25 buc	7,27 lei fara TVA	- +
KNR RS 5	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 133–141 mm 5“	5“	Verifica stoc	15 buc	10,58 lei fara TVA	- +
KNR RS 412	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 121–127 mm 4 1/2"	4 1/2"	Verifica stoc	15 buc	9,86 lei fara TVA	- +
KNR RS 6	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 159–168 mm 6“	6“	Verifica stoc	12 buc	11,90 lei fara TVA	- +
KNR RS 8	Colier conducta cu doua suruburi, manson EPDM/ M8/M10 208–212 mm 8“	8“	Verifica stoc	12 buc	14,16 lei fara TVA	- +
