Colier cu un surub fixare rapida/EPDM/M8/Gama ¹⁄₈“ la 4“
1.56 lei – 7,440.00 lei fara TVA
Colier cu un surub fixare rapida/EPDM/M8/Gama de la ¹⁄₈“ la 4“

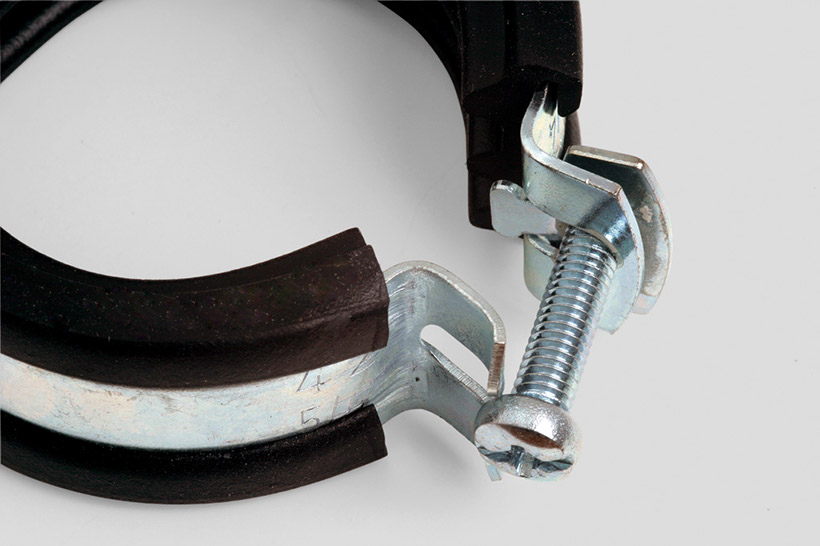

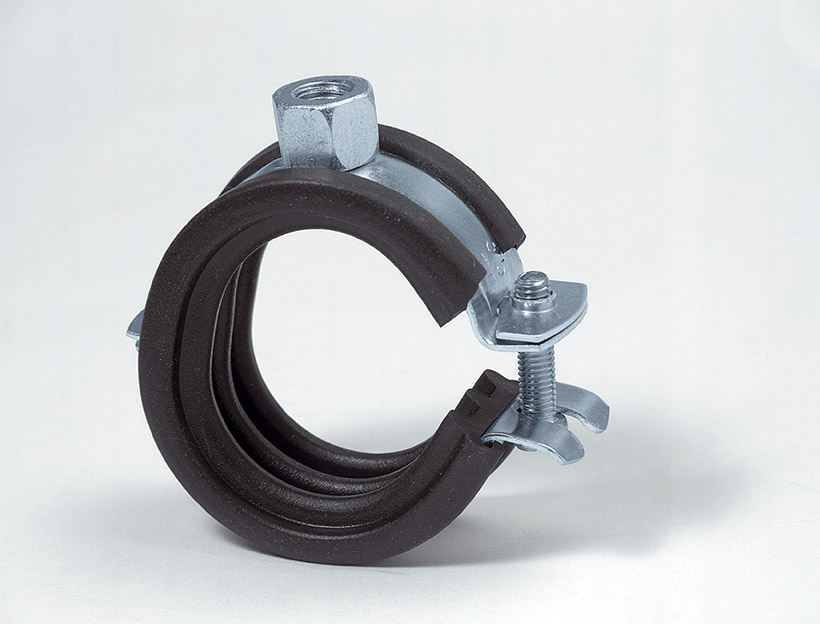

Colier cu manson EPDM dintr-o singura bucata, cu un singur surub M5x25mm, echipat cu sistemul de inchidere rapida pentru un montaj usor, rapid si sigur. Caracterizat printr-o riguditate buta si o protectie anticoroziva superioara.
- Colierul permite fixarea cu o singura mana.
- A pipe is preassembled by mere snapping.
- Sistemul de inchidere rapida protejeaza fixarea impotriva deschiderii dupa fixare.
- Compact structural design of the clamp enables simple and full piping insulation without larger overlap in the area of the toggle and closing device. All this is possible even using a small thickness of insulating material.
- It prevents the action of electrolysis.
- Single-screw pipe clamps with a snap lock satisfy the highest requirements while mounting on walls, ceilings and floors but also in connection with pipes used in sanitary installations.
- The pipe clamp is checked regarding noise protection according to DIN 4109.
This product is registrated at European Designs(see detail)
Technical data rubber linings used in pipe clamps
-
Material: EPDM
-
Comportament la foc : Conform DIN 4102:1998 materiale de constructii clasa B2
-
Gama temperaturi de lucru : -50 °C la +120 °C
-
Duritate manson EPDM : 45° ± 5 Shore A / 15 s
Technical data
-
Load causing break in centric tension : 1,8 kN
-
Sarcina maxima admisa : 0,8 kN
-
Pipe clamp material : ČSN 11 320.21
-
Acoperire anticoroziva : zincare
-
Certificari : TZUS: č.204/C5/2013/070-045127
Utilizari: teava otel, teava plastic, teava cupru, teava inox
Field: instalatii sanitare si pentru incalzire, sisteme de distributie gaz, ventilatii, aer conditionat, etc.
| COD: | Miniatură | Descriere produs | Diametru teava | Disponibilitate stoc | Cantitate per.cutie | Preț | Cantitate | |
|---|---|---|---|---|---|---|---|---|
| KNR GRS 18 |
|
Colier conducta cu un surub cu manson EPDM/ M8 10–12 1/8" | 1/8" | Stoc curent | 100 buc | 1.56 lei fara TVA |
-
+
|
|
| KNR GRS 14 100 |
|
Colier conducta cu un surub cu manson EPDM/ M8 12–16 1/4" | 1/4" | Stoc curent | 100 buc | 1.63 lei fara TVA |
-
+
|
|
| KNR GRS 38 100 |
|
Colier conducta cu un surub cu manson EPDM/ M8 17–19 3/8" | 3/8" | Stoc curent | 100 buc | 1.69 lei fara TVA |
-
+
|
|
| KNR GRS 12 100 |
|
Colier conducta cu un surub cu manson EPDM/ M8 20–23 1/2" | 1/2" | Stoc curent | 100 buc | 1.84 lei fara TVA |
-
+
|
|
| KNR GRS 34 100 |
|
Colier conducta cu un surub cu manson EPDM/ M8 25–28 3/4" | 3/4" | Stoc curent | 100 buc | 2.01 lei fara TVA |
-
+
|
|
| KNR GRS 1 100 |
|
Colier conducta cu un surub cu manson EPDM/ M8 32–35 1" | 1" | Stoc curent | 100 buc | 2.20 lei fara TVA |
-
+
|
|
| KNR GRS 14 |
|
Colier conducta cu un surub cu manson EPDM/ M8 40–44 5/4" | 5/4" | Stoc curent | 50 buc | 2.30 lei fara TVA |
-
+
|
|
| KNR GRS 38 |
|
Colier conducta cu un surub cu manson EPDM/ M8 48–51 6/4" | 6/4" | Stoc curent | 50 buc | 2.77 lei fara TVA |
-
+
|
|
| KNR GRS 12 |
|
Colier conducta cu un surub cu manson EPDM/ M8 60–64 2" | 2" | Stoc curent | 50 buc | 3.86 lei fara TVA |
-
+
|
|
| KNR GRS 34 |
|
Colier conducta cu un surub cu manson EPDM/ M8/M10 75-80 2 1/2" | 2 1/2" | Stoc curent | 50 buc | 5.40 lei fara TVA |
-
+
|
|
| KNR GRS 1 |
|
Colier conducta cu un surub cu manson EPDM/ M8/M10 87-92 3" | 3" | Stoc curent | 25 buc | 6.11 lei fara TVA |
-
+
|
|
| KNR GRS 114 |
|
Colier conducta cu un surub cu manson EPDM/ M8/M10 102-116 4" | 4" | Stoc curent | 25 buc | 7,440.00 lei fara TVA |
-
+
|
